Jame Joepai Jaminan Berkualiti Tinggi, Joepai menyediakan komprehensif Pengenalan kepada ANSI Standard 2-PC Flanged Ball Valve Class 150lb Berkaitan piawaian, pemilihan, fungsi, rajah struktur, spesifikasi dan model; Dimensi, prinsip kerja, pemasangan dan penyelenggaraan, dan Manual produk injap bola; Untuk menyediakan satu siri produk injap bola bebibir dengan kualiti tinggi, prestasi tinggi, piawaian tinggi, jangka hayat tinggi, dan Harga yang berpatutan untuk pelanggan kami.
Batang injap dilengkapi dengan tetapan anti statik
Reka bentuk alat penyemperitan anti injap
Terdapat lubang pelepasan tekanan di alur bola keluli
Mengadopsi pemutus deparaffinized
Reka bentuk: ANSI 16.34
Akhir Flange: ASME B16.5
Dimensi bersemuka: ASME B16.10
Pemeriksaan & Ujian: API 598
Saiz: 1/2 "~ 10", Tekanan: 150lb ~ 300lb

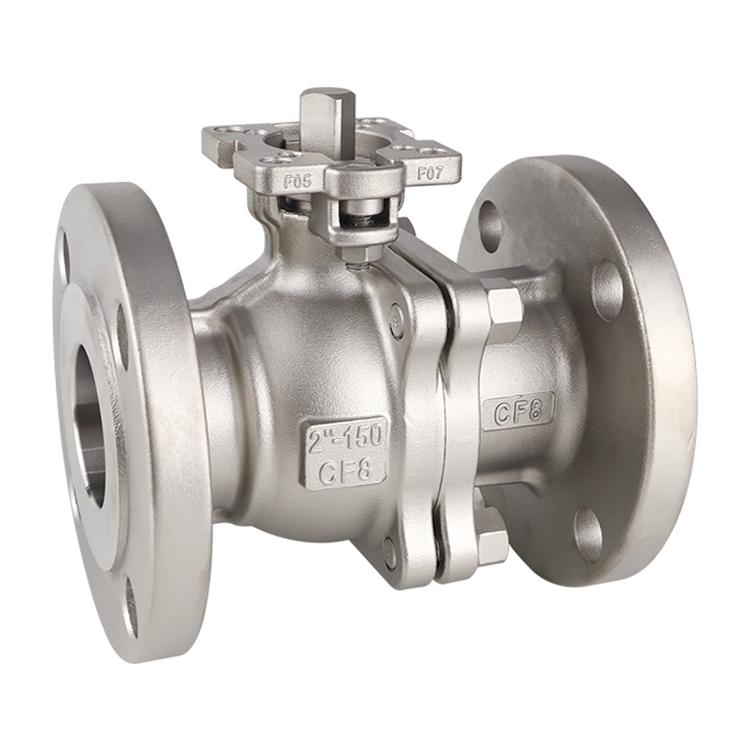

Port penuh, pad pemasangan langsung ISO5211
Reka bentuk STEM

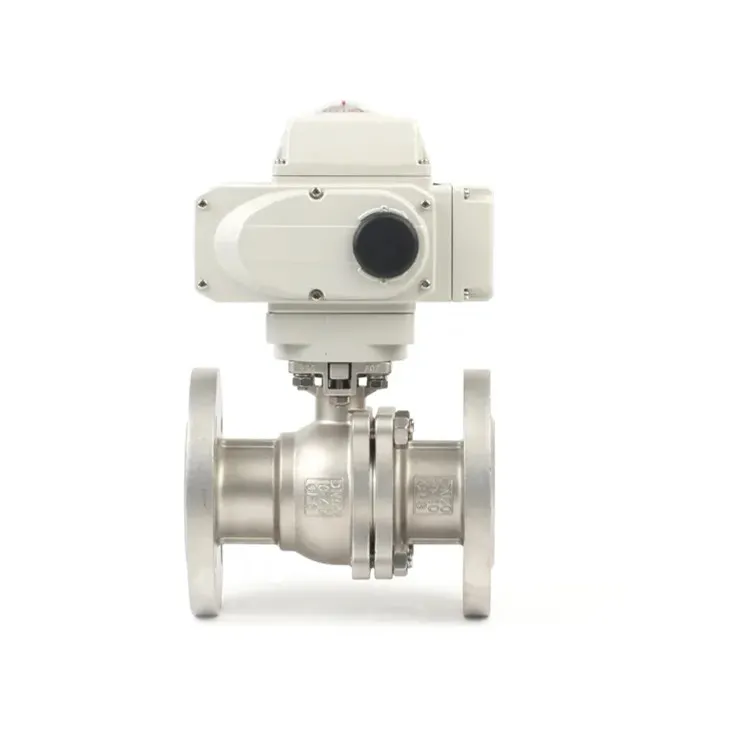

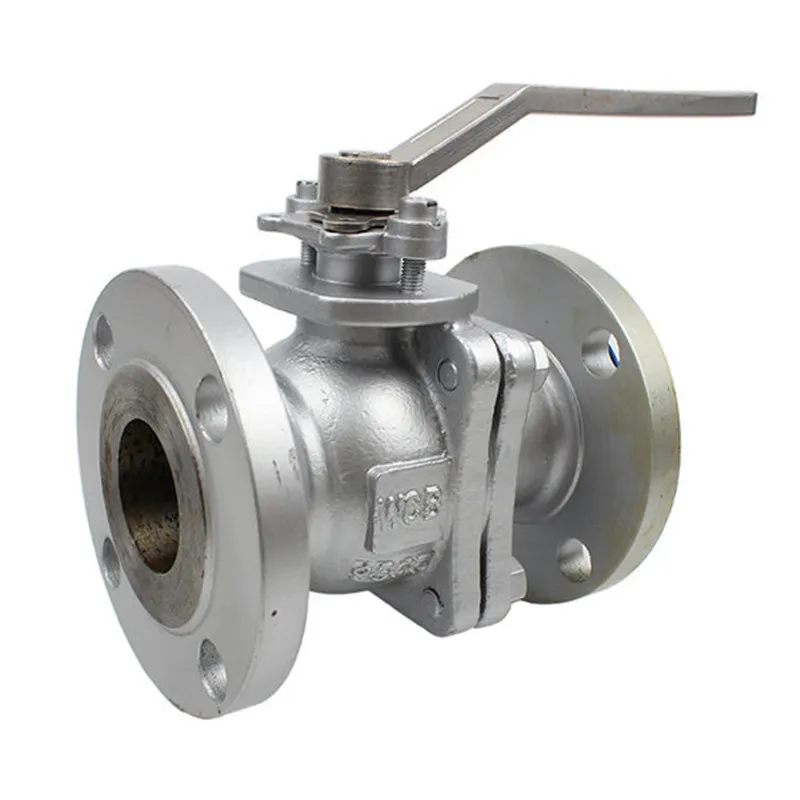

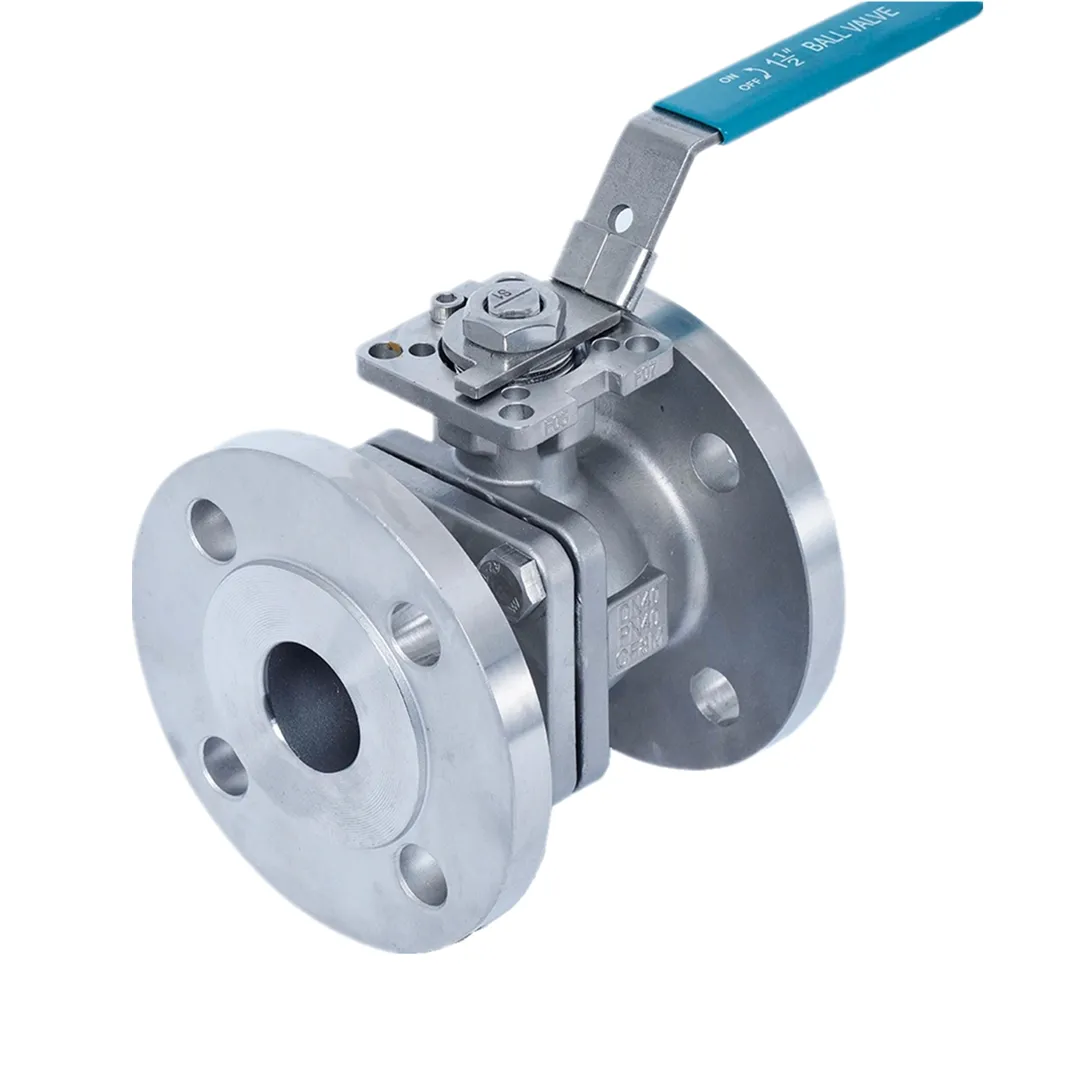

Operasi tuil dengan alat pengunci, penggerak pneumatik atau elektrik
Pelaburan Pelaburan
Bahan: Karbon keluli WCB/DIN1.0619
Keluli tahan karat 304/1.4308
Keluli tahan karat 316/1.4408
Sesuai: air, minyak, gas
| 1 | Badan | WCB/ CF8/ CF8M | 9 | Pad tujahan | WCB/ CF8/ CF8M |
| 2 | Tempat duduk | Ptfe | 10 | Pembungkusan | WCB/ CF8/ CF8M |
| 3 | Bola | SS304/ SS316 | 11 | Batang | SS304/ SS316 |
| 4 | Bolt | SS304/ SS316 | 12 | Kelenjar | SS304/ SS316 |
| 5 | Mesin basuh musim bunga | SS304/ SS316 | 13 | Kacang | SS304/ SS316 |
| 6 | Kacang | SS304/ SS316 | 14 | Mesin basuh musim bunga | SS304/ SS316 |
| 7 | Cap | WCB/ CF8/ CF8M | 15 | Tuil | Ss |
| 8 | Gasket | WCB/ CF8/ CF8M |
| NPS | Dn | L | D | D1 | D2 | b | t | z-φd |
| 1/2 " | 15 | 108 | 90 | 60.3 | 34.9 | 11.5 | 1.6 | 4-F16 |
| 3/4 " | 20 | 117 | 100 | 69.9 | 42.9 | 13 | 1.6 | 4-F16 |
| 1 " | 25 | 127 | 110 | 79.4 | 50.8 | 14.5 | 1.6 | 4-F16 |
| 11/4 " | 32 | 140 | 115 | 88.9 | 63.5 | 16 | 1.6 | 4-F16 |
| 11/2 " | 40 | 165 | 125 | 98.4 | 73 | 17.5 | 1.6 | 4-F16 |
| 2 " | 50 | 178 | 150 | 120.7 | 92.1 | 19.5 | 1.6 | 4-F19 |
| 21/2 " | 65 | 190 | 180 | 139.7 | 104.8 | 22.5 | 1.6 | 4-F19 |
| 3 " | 80 | 203 | 190 | 152.4 | 127 | 24 | 1.6 | 4-F19 |
| 4 " | 100 | 229 | 230 | 190.5 | 157.2 | 24 | 1.6 | 4-F19 |
| 5 " | 125 | 356 | 255 | 215.9 | 185.7 | 24 | 1.6 | 4-F22 |
| 6 " | 150 | 394 | 280 | 241.3 | 215.9 | 25.5 | 1.6 | 4-F22 |
| 8 " | 200 | 457 | 345 | 298.5 | 269.9 | 29 | 1.6 | 4-F22 |
| 10 " | 250 | 533 | 405 | 362 | 323.8 | 30.5 | 1.6 | 4-F25 |
| 12 " | 300 | 610 | 485 | 431.8 | 381 | 32 | 1.6 | 4-F25 |
| 14 " | 350 | 686 | 535 | 476.3 | 412.8 | 35 | 1.6 | 4-F29 |
| 16 " | 400 | 762 | 595 | 539.8 | 469.9 | 37 | 1.6 | 4-F29 |
| NPS | Dn | L | D | D1 | D2 | b | t | z-φd |
| 1/2 " | 15 | 140 | 95 | 66.7 | 34.9 | 14.5 | 1.6 | 4-F16 |
| 3/4 " | 20 | 152 | 115 | 82.6 | 42.9 | 16 | 1.6 | 4-F19 |
| 1 " | 25 | 165 | 125 | 88.9 | 50.8 | 17.5 | 1.6 | 4-F19 |
| 11/4 " | 32 | 178 | 135 | 98.4 | 63.5 | 19.5 | 1.6 | 4-F19 |
| 11/2 " | 40 | 190 | 155 | 114.3 | 73 | 21 | 1.6 | 4-F22 |
| 2 " | 50 | 216 | 165 | 127 | 92.1 | 22.5 | 1.6 | 8-F19 |
| 21/2 " | 65 | 241 | 190 | 149.2 | 104.8 | 25.5 | 1.6 | 8-F22 |
| 3 " | 80 | 282 | 210 | 168.3 | 127 | 29 | 1.6 | 8-F22 |
| 4 " | 100 | 305 | 255 | 200 | 157.2 | 32 | 1.6 | 8-F22 |
| 5 " | 125 | 381 | 280 | 235 | 185.7 | 35 | 1.6 | 8-F22 |
| 6 " | 150 | 403 | 320 | 269.9 | 215.9 | 37 | 1.6 | 12-F22 |
| 8 " | 200 | 502 | 380 | 330.2 | 269.9 | 41.5 | 1.6 | 12-F25 |
| 10 " | 250 | 568 | 445 | 387.4 | 323.8 | 48 | 1.6 | 16-F29 |
| 12 " | 300 | 648 | 520 | 450.8 | 381 | 51.0 | 1.6 | 16-F32 |
| 14 " | 350 | 762 | 585 | 514.4 | 412.8 | 54.0 | 1.6 | 20-F32 |
| 16 " | 400 | 838 | 650 | 571.5 | 469.9 | 57.5 | 1.6 | 20-F35 |
